JRC


NRD525

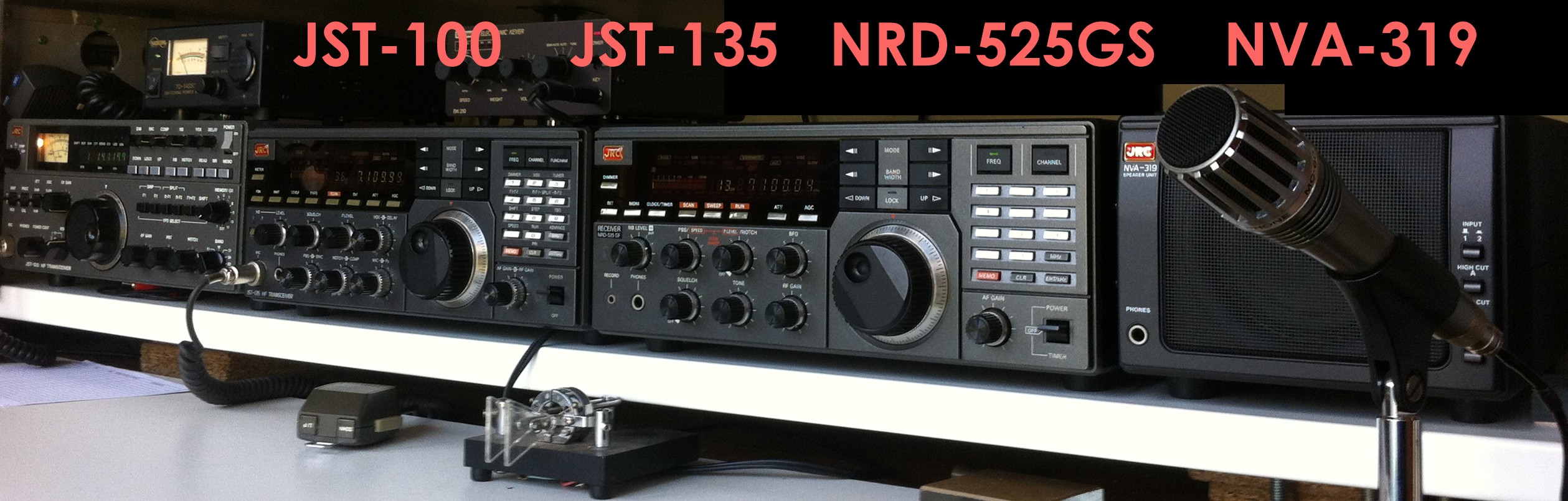

This is my NRD525 GF. A wonderfull receiver.

Now, this receiver is at William Home, near Miami.

Frequency Range ...... 90 - 34.000 kHz
Power ................ 100/120/220/240 VAC 50/60 Hz  35VA max.
                       12 VDC   25W max.
Antenna Impedance .... 50 or 600 ohm
Selectivity (-6dB) ... AUX  (12 kHz with no filter)
                       WIDE  > 4 kHz
                       INTER > 2 kHz
                       NARR  (option)
                       [FM]  > 12 kHz
Sensitivity .........  .5 µV 1.6-34 MHz SSB/CW S+N/N=10dB
Image Rejection ...... > 70 dB (1.6 - 30 MHz)
IF Rejection ......... > 70 dB (1.6 - 30 MHz)
Frequency Accuracy ... ± 10 x 10-6 or better.
Frequency Stability .. ± 3 PPM
Intermediate Freqs. .. 1st IF = 70.45399-70.453 MHz
                       2nd IF = 455 kHz
BFO Variation Range .. 455 kHz = ± 2 kHz
PBS Variation Range .. ± 1 kHz or more
Notch Attenuation .... -30 dB or more
Audio Output ......... 0.5 W at 4 Ohms
Line-Record Output ... > 1mW at 600 Ohms
Dimensions ........... 13 x 5.2 x 11.25 inches.  330 x 130 x 280 mm
Weight ............... 20 Lbs. (8.5 kg)

Some links about this famous RX: (click on links)

JRC_NRD525-QST_Jul_1988_p40-43

JRC_NRD525_mod

JRC_NRD525_Low_Res
