Sommerkamp Yaesu Trio

SOMMERKAMP FT277E

This transceiver was destroyed… The PA was burned. Now in good health !

All transistors except Driver and PA with tubes.


YAESU TRIO TEMPO-ONE

Similar with a FT200.
I have this unit since 1980… Sleeping in a corner of my shack.
Lot of work to restore it… Bad caps, bad tuning,…
Now it is alive and nice to use.




Sommerkamp FRDX500

Our receiver when we were young… Still at home.


Sommerkamp FTDX505

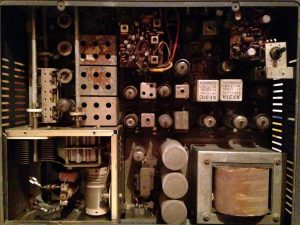

I buy it in a Hamfest in November ‘s 2018 for just 50 euros. This poor transceiver was in very bad conditions. He was sleeping in a wet place during several years and inside is lot of dusty part…

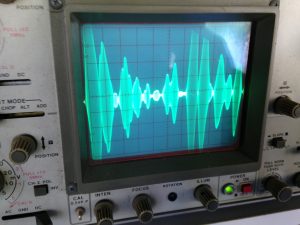

I first clean it, change lot of resistors and caps. Realign it. Now the receiver part is OK. For the transmit part i get around 110w with new 6KD6. But i have a large problem in the mode switch because lot of bad contacts. I have now to undolder all the wires on this switch and to change it with a new one….

Some easy tools to restore it: (thanks Alain F1LAG, my brother)

F6HOY-FTDX505_manualx

click to view the assembled shematic

FTDX505 schematic in PDF

FTDX505 path Alim

FTDX505 RX path

FTDX505 TX path

An excel sheet very useful : F6HOY-FTDX 505 v2





 FTDX505 with the FRDX500 on top…

The bad and destroyed Mode Swicth…


Trio TR2E VHF AM

My first trasceiver on 2m in 1982. Dual VFO 10W on 144Mhz.

With some modifications:  Préamplifier with BFR91 and FM with a varicap.

F6HOY-TR2E-023

F6HOY-TR2E-024

F6HOY-TR2E-025

tr2e-SERVICE MANUAL
